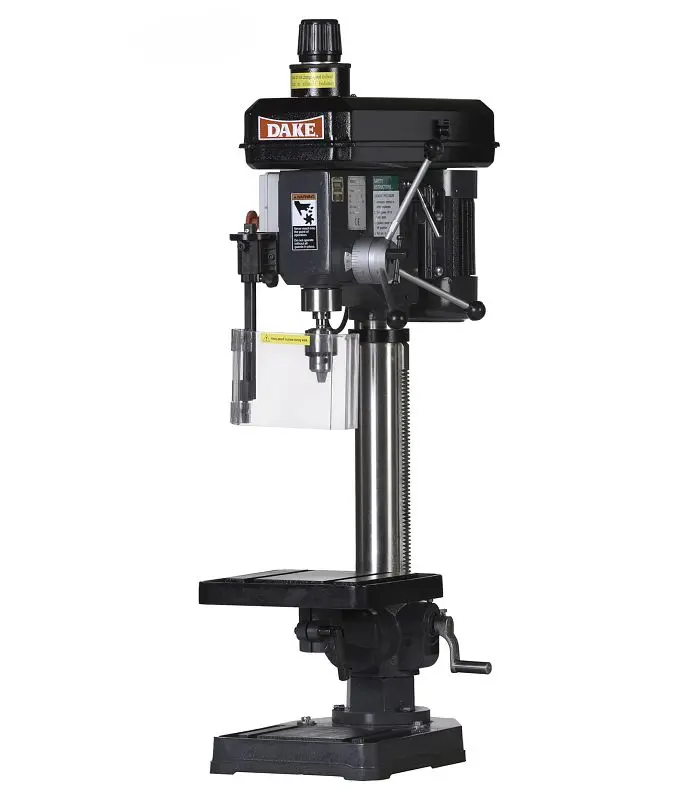

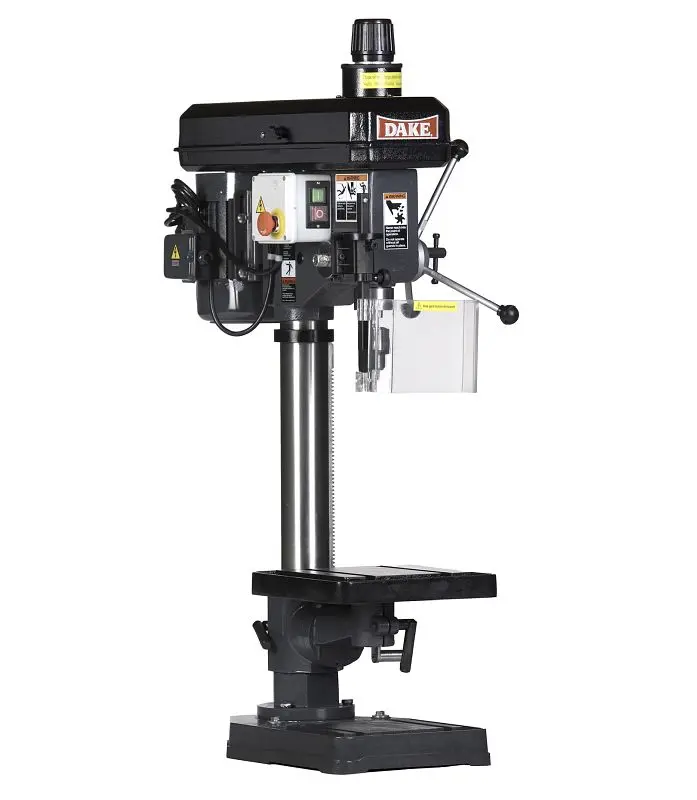

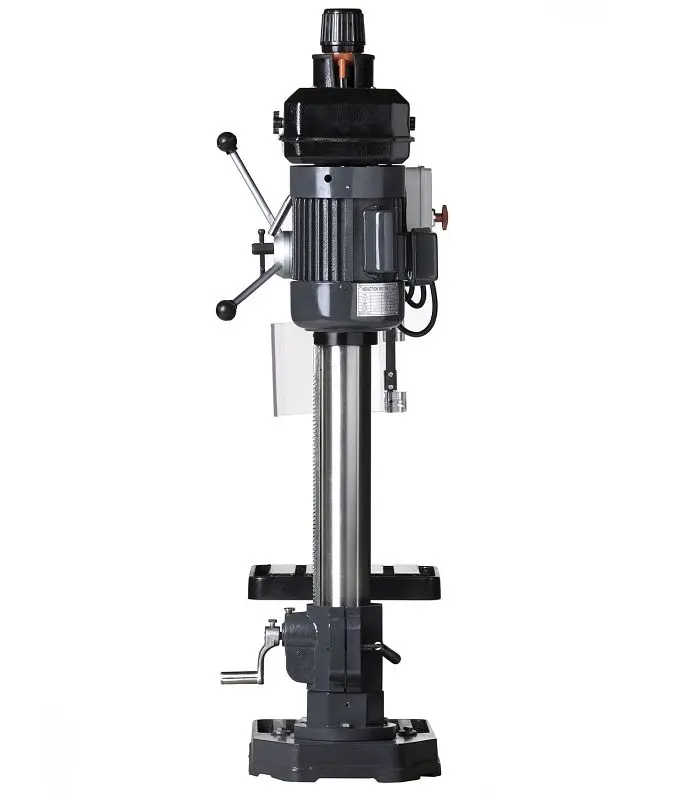

Dake Bench Model Drill Presses, Model TB-16V, Spindle speed 545-4,000 rpm, 977102

Dake Bench Model Drill Presses, Model TB-16V, Spindle speed 545-4,000 rpm, 977102

5/8″ drill capacity. Bench top variable speed drill press that is ideal for cell applications requiring fast tooling alters. Featuring a locking handle hub for reiterateable depth, CE safety electrical package, a large diameter sturdy spindle, and a massive cast head. The speed can be easily adjusted while drilling by turning the large selector knob on the top of the drill.

Attributes:

• A locking handle hub with convenient dial-in adjustment and an simple to read scale for fast, accurate, and reiterateable depth setting alters.
• Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation.
• Bench and floor models both have machined table and base surfaces with t-slots for mounting and fixturing.
• Top mounted speed selector knob with convenient speed range indicators allows operator to dial in optimal speed range.
• CE safety electrical package features push button on/off switch, emergency stop button, low voltage controls, thermal overload, and interlock safety switch for belt cover.
• Massive cast head, machined column, and sturdy cast base reduces vibration.
• Quick bit alters with standard Morse Taper (MT), common adaptors or standard keyed chuck.
• Handle has 3 spokes with spring return for precise operator control and ergonomic operation.

Quality Equipemnt:

• 1/2″ Keyed chuck
• Drift for bit removal
• Plexiglas chip and chuck guard

Technical specs

• Model Number: TB-16V
• Drill capacity: 5/8″
• Horsepower: 1/2
• Spindle taper: MT2
• Working diameter: 14-1/8″
• Number of speed: Mechanical variator
• Spindle speed range: 545-4,000 rpm
• Electrics: 110V 1PH
• Weight: 175 lbs
• Spindle travel: 3-1/8″
• Column diameter: 3-1/8″
• Table depth: 11-3/4″
• Table width: 11-3/4″
• Base depth: 17-3/4″
• Base width: 12-1/4″
• Spindle to table: 16-1/2″
• Spindle to base: 26-1/2″
• Overall height: 42-1/2″
