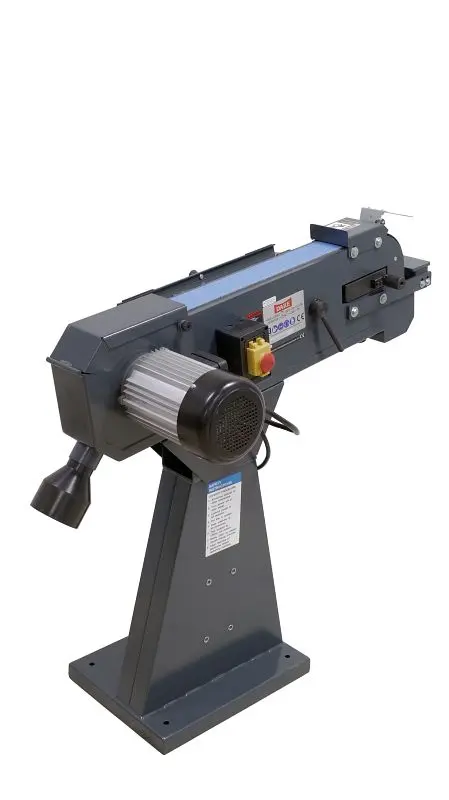

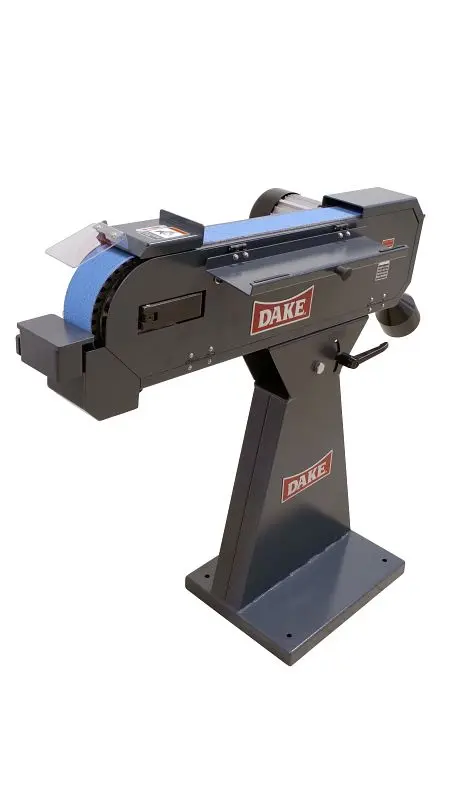

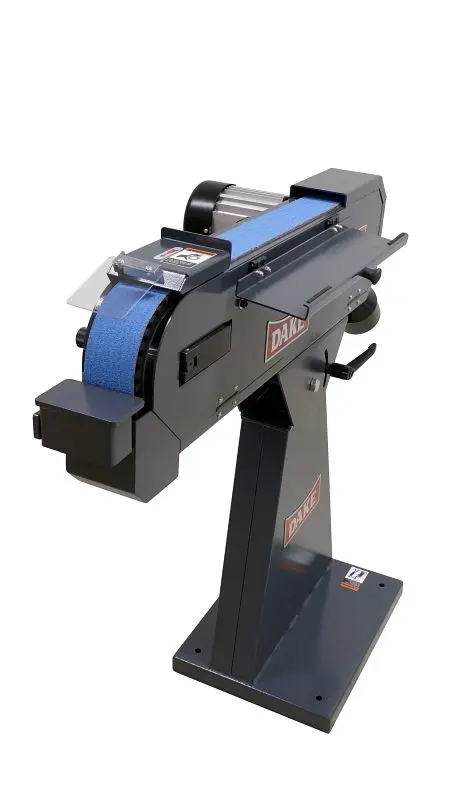

Dake Belt Grinder, Model FG-75, 961003

Dake Belt Grinder, Model FG-75, 961003

6,000 fpm. With 6,000 fpm grinding speed and a 4 HP motor, our belt grinder is designed for maximum metalworking efficiency. The head pivots up and down for simple work height adjustments to adapt to the job at hand. A hinged top cover opens for access to grind large pieces of metal.

Attributes:

• Pivots up and down on the base for simple ergonomic work height adjustments.
• Cutting-edge belt tracking with vented front wheel fixed in place for rigidity when grinding on the wheel radius.
• Hinged top cover opens for access to grind large pieces using the entire length of the belt.
• Adjustable parts rest and supporting plate with Plexiglass shield to keep the part being ground steady and in place

Model Options:

• Belt- 40 grit sold per belt
• Belt- 60 grit sold per belt

Quality Equipment:

• Base
• Hinged Cover
• Grinding Belt
• Plexiglas Guarding
• 60 Grit Belt

Technical specs

• Model Number: FG-75
• Belt size: 3″ x 79″
• Horsepower: 4
• Electrics: 220 volts
• 3 phase
• Contact wheel size: 3″ x 8″
• Belt speed: 6,000 fpm
• Grinding plane (full): 3″ x 21″
• Weight: 139 lbs
