Dake All-Purpose Functionality Hydraulic Presses, Model F-20, 70" Height, 972220

Dake Functionality Hydraulic Presses, Model F-20, 70″ Height, 972220

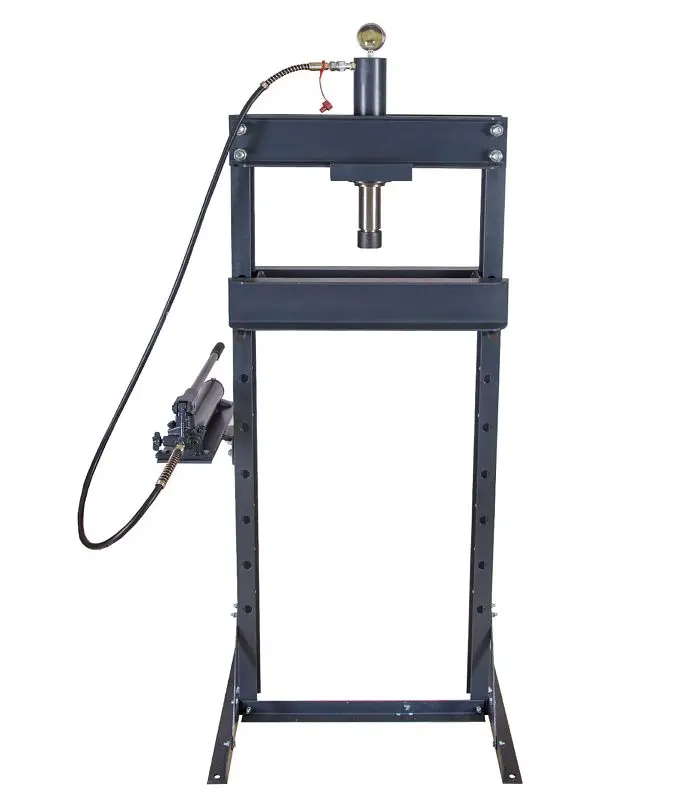

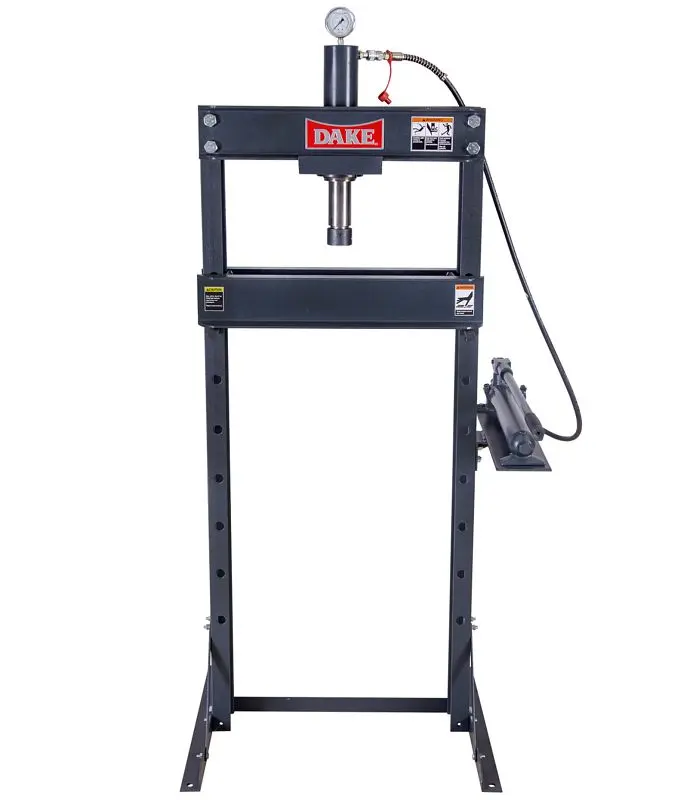

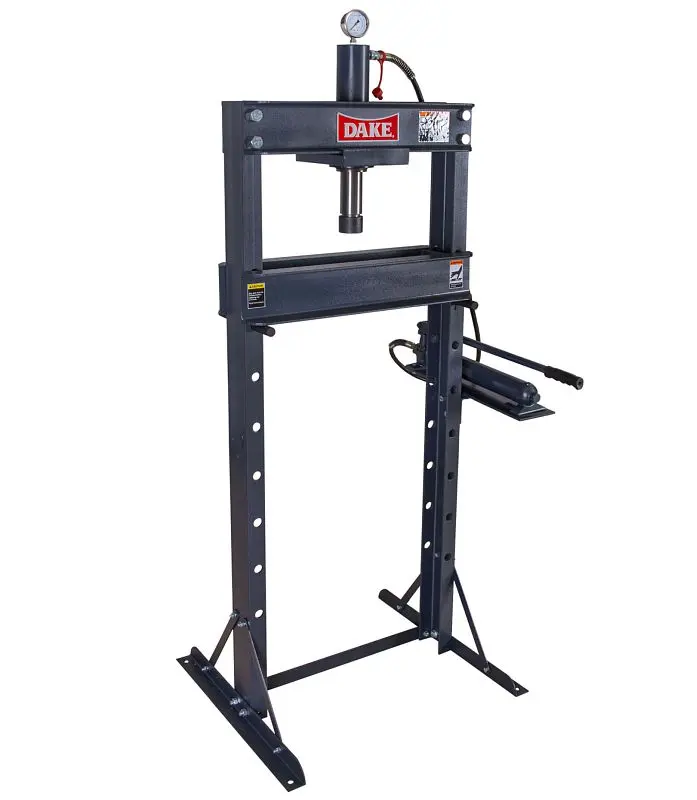

20 ton capacity. Dake”line of utility presses might look small but they are extremely durable. The perfect addition for any home or hobby shop. The F-20 model is a 20 ton capacity floor press with a quick, 2-speed pump. For custom applications, a traversing head and removable nose piece come standard. Complete with table plates, gauge, and manual.

Attributes:

• Heavy steel channel frame and table
• Long 8″ stroke
• Self-contained fast, efficient two speed hand operated pump conveniently located
• Traversing head L/R for off center pressing applications
• Removable nose piece to allow for custom nose piece installation
• Table can be adjusted for maximum or minimum vertical opening to accommodate a variety of work pieces and to minimize required ram travel
• Large diameter, single acting polished piston with internal spring return to eliminate external pinch points
• Comes complete with table plates, gauge, and owners manual

Quality Equipemnt:

• Steel channel and frame
• Traversing head
• Removable nose piece
• Table plates
• Gauge
• Step nose piece

Technical specs

• Model Number: F-20
• Capacity: 20 tons
• Operation: Manual
• Width between uprights: 22″
• Width between table channels: 4″
• Minimum ram to table: 4″
• Maximum ram to table: 39″
• Ram travel: 8″
• Horizontal workhead travel: left/right of center
• Footprint: 34″ x 26″
• Height: 70″
• Weight: 283 lbs
• Base: 34″ x 26″
• Ram advance speed: 3/16″ per stroke
