Bosch REVOLVE2000 Self-Leveling Horizontal/Vertical Rotary Laser Kit, 0601061S10

Bosch REVOLVE2000 Self-Leveling Horizontal/Vertical Rotary Laser Kit, 0601061S10, 0000346643060

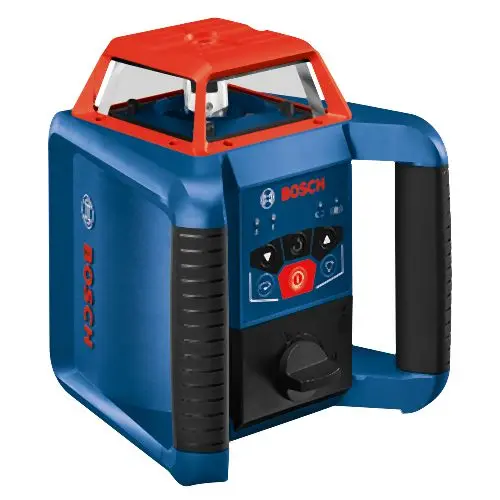

REVOLVE2000 Self-Leveling Horizontal/Vertical Rotary Laser Kit

The Bosch REVOLVE2000 Self-Leveling Horizontal/Vertical Rotary Laser Kit delivers a comprehensive answer for precise outdoor and indoor leveling. Manual Dual Slope allows the utilizer to adjust the slope angle on the laser on both the X- and Y-axes. The GRL2000-40HVK features a horizontal/vertical self-leveling laser, suitable for leveling and aligning applications. This kit contains an all-in-one hard carrying case designed to hold all included accessories. The REVOLVE2000 rotary laser delivers ±1/16 Inches accuracy at 100 Ft. and a working range of up to 2,000 Ft. with the included receiver. The laser’s electronic self-leveling system has a disturbance monitor, which indicates to the utilizer if tool position alters, ensuring consistent leveling accuracy on the jobsite. The laser has a red metal cage for durability. User-friendly, the kit includes an all-in-one answer includes an LR20 laser receiver with mounting bracket, aluminum tripod, RC4 remote control, WM4 wall mount and sturdy grade rod.

• (1) GRL2000-40HVK REVOLVE2000 Self-Leveling Horizontal/Vertical Rotary Laser
• (1) LR20 Laser Receiver with Bracket
• (1) BT160 Aluminum Contractor Tripod
• (1) GR13 13 Ft. Grade Rod
• (1) Red Laser Glasses
• (1) Red Target Plate
• (1) RC4 Remote Regulation
• (1) WM4 Wall Mount
• (4) AA Batteries
• (2) D Batteries
• (1) All-In-One Hard Carrying Case
• Complete kit – features a laser receiver, tripod, grade rod, remote control, wall mount and all-in-one hard carrying case
• Comprehensive hard carrying case – designed to hold included accessories: receiver with bracket, tripod, grade rod and more

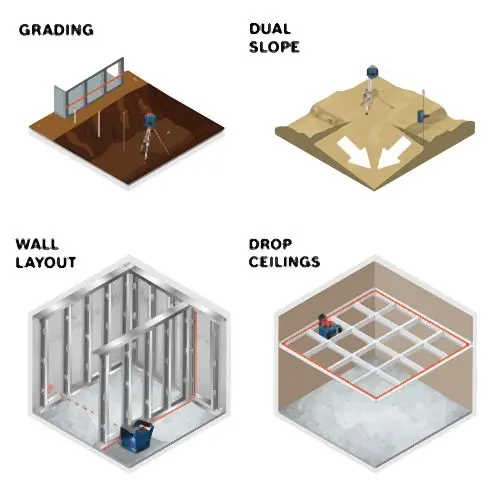

• Manual Dual Slope – allows the utilizer to adjust the slope angle on the laser on both the X- and Y-axes
• Electronic self-leveling – allows for simple setup and utilize on the job
• Disruptance monitor – indicates if tool position alters, ensuring consistent leveling accuracy
• Dependable accuracy – delivers ±1/16 Inches accuracy at 100 Ft.

Technical specs

• Height: 7.5″
• IP Rating: IP 56
• Laser Beam Color: Red
• Laser Diode: Class 3R<5mW @ 630 ~ 670nm
• Length: 7.0″
• Leveling Type: Self-Leveling, Up to 5°
• Material: Plastic Composite
• Mount Threading: 5/8-11
• Operating Temperature: 14° F / -10° C ~1 22° F / 50° C
• Range: Up to 2,000-ft.
• Weight: 3.9lb
• Width: 6.7″
• Works With: Laser Receivers LR 1 G, LR 30, LR40, LR 50 Tripods BT160, BT170HD, BT300HD, BT 150 Grade Rods GR500 Mounts and Positioning Devices WM 4
• Includes: (1) GRL2000-40HVK REVOLVE2000 Self-Leveling Horizontal/Vertical Rotary Laser, (1) LR20 Laser Receiver with Bracket, (1) BT160 Aluminum Contractor Tripod, (1) GR13 13 Ft. Grade Rod, (1) Red Laser Glasses, (1) Red Target Plate, (1) RC4 Remote Control, (1) WM4 Wall Mount, (4) AA Batteries, (2) D Batteries, (1) All-In-One Hard Carrying Case
