Bosch 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser with (1) CORE18V 4.0 Ah Space-saving Battery, 0601061F10

Bosch 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser with (1) CORE18V 4.0 Ah Space-saving Battery, 0601061F10, 0000346643039

18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser with (1) CORE18V 4.0 Ah Space-saving Battery

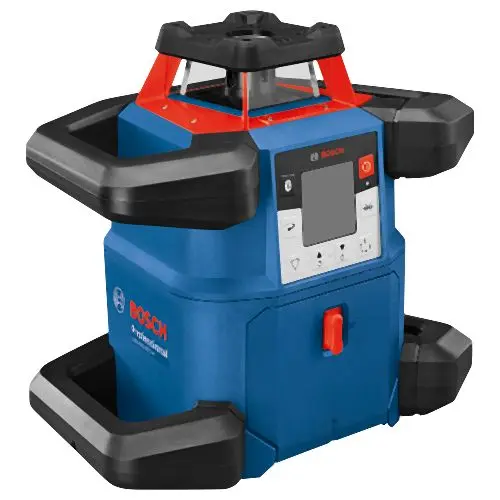

The Bosch 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser with uCAL User-calibration delivers a comprehensive answer for precise outdoor and indoor leveling. It has a Dual Dial-In Slope feature that allows slope angle adjustment on both the X and Y axes, for grading applications. The GRL4000-80CHV is powered by a Bosch CORE18V 4.0 Ah battery, providing extended runtime. The rotary laser is compatible with 4.0 Ah and 8.0 Ah Bosch CORE18V Li-ion batteries. It also features an alkaline adapter to utilize four (D) cells. The REVOLVE4000 is engineered with a cage overmold and an innovative handle design, and it is built to IP68 dust- and water-protection standards. It features Bluetooth® connectivity to a connected device, linking to the Bosch Leveling Remote App. This app controls on/off, Dual Dial-In Slope, and more. The rotary laser features uCAL, for utilizer-calibration, taking the utilizer step by step through the calibration process. This avoids tool down time and provides confidence that the laser is accurate. It delivers accuracy of up to ±1/16 Inches at 100 Ft. in horizontal applications and ±1/8 Inches at 100 Ft. in vertical mode, and a range of up to 4,000 Ft. with laser receiver. The laser features a vertical beam at 90° point for layout, squaring and plumb applications.

• (1) GRL4000-80CHV 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser
• (1) LR40 Laser Receiver with Bracket
• (1) GBA18V40 18V CORE18V Lithium-Ion 4.0 Ah Space-saving Battery
• (1) 18V Charger
• (1) BA1 Alkaline Battery Modifyer
• (4) D Batteries
• (4) AA Batteries
• (1) WM6 Wall Mount
• (1) RC5 Remote Regulation
• (1) Carrying Case

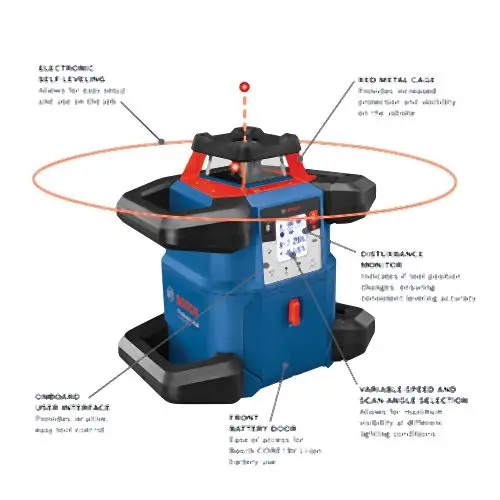

• Fully featured rotary laser – has Dual Dial-In Slope, CORE18V power, Bluetooth® connectivity, uCAL utilizer-calibration and more
• Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes
• Dual Power Source – for extended runtime and choice of a 4.0 Ah CORE18V battery or a battery adapter with four (D) cell batteries
• Long-lasting design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
• Bluetooth® connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more
• uCAL – utilizer-calibration guiding the utilizer step-by-step to confirm tool state or calibrate the rotary laser to ensure accuracy on the jobsite

Technical specs

• Battery: Lithium-Ion Battery
• Height: 11.0″
• IP Rating: IP 68
• Laser Beam Color: Red
• Laser Diode: Class II 635 nm,< 1mW
• Length: 12.8″
• Leveling Type: Self-Leveling, Up to 5°
• Material: Plastic Composite
• Mount Threading: 5/8-11
• Operating Temperature: 14° F / -10° C ~1 22° F / 50° C
• Range: Up to 4,000-ft.
• Weight: 8.2lb
• Width: 7.4″
• Works With: Laser Receivers LR 1 G, LR 30, LR40, LR 50 Tripods BT160, BT170HD, BT300HD, BT 150 Grade Rods GR500 Mounts and Positioning Devices WM 4
• Includes: (1) GRL4000-80CHV 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser, (1) LR40 Laser Receiver with Bracket, (1) GBA18V40 18V CORE18V Lithium-Ion 4.0 Ah Compact Battery, (1) 18V Charger, (1) BA1 Alkaline Battery Adapter, (4) D Batteries, (4) AA Batteries, (1) WM6 Wall Mount, (1) RC5 Remote Control, (1) Carrying Case
