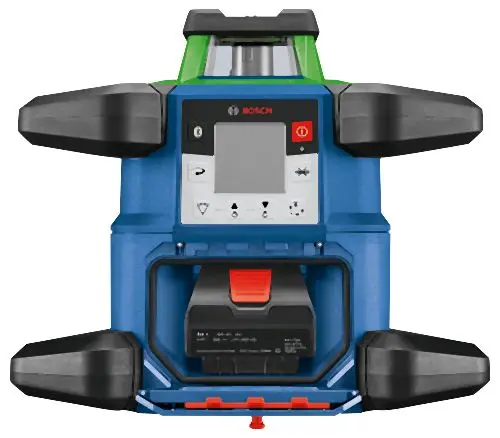

Bosch 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4.0 Space-saving Battery, 0601061V10, 0000346662870
18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V 4.0 Space-saving Battery
The 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser Kit with uCAL User-calibration delivers a comprehensive answer for precise outdoor and indoor leveling. It has a Dual Dial-In Slope feature that allows slope angle adjustment on both the X and Y axes, for grading applications. This laser is powered by a Bosch CORE18V 4.0 Ah battery, providing extended runtime. Its green-beam laser is up to 4X brighter than standard red beams. The rotary laser is compatible with 4.0 Ah and 8.0 Ah Bosch CORE18V Li-ion batteries. It also features an alkaline adapter to utilize four (D) cells. The REVOLVE4000 is engineered with a cage overmold and an innovative handle design, and it is built to IP68 dust- and water-protection standards. It features Bluetooth® connectivity to a connected device, linking to the Bosch Leveling Remote App. This app controls on/off, Dual Dial-In Slope, and more. The rotary laser features uCAL, for utilizer-calibration, taking the utilizer step by step through the calibration process. This avoids tool down time and provides confidence that the laser is accurate. It delivers accuracy of up to ±1/16 Inches at 100 Ft. in horizontal applications and ±1/8 Inches at 100 Ft. in vertical mode, and a range of up to 4,000 Ft. with laser receiver. The laser features a vertical beam at 90° point for layout, squaring and plumb applications. The comprehensive kit includes a remote control, 18V 4.0 Ah battery and charger, alkaline battery adapter, wall mount, laser receiver, aluminum tripod, sturdy grade rod and durable hard carrying case.

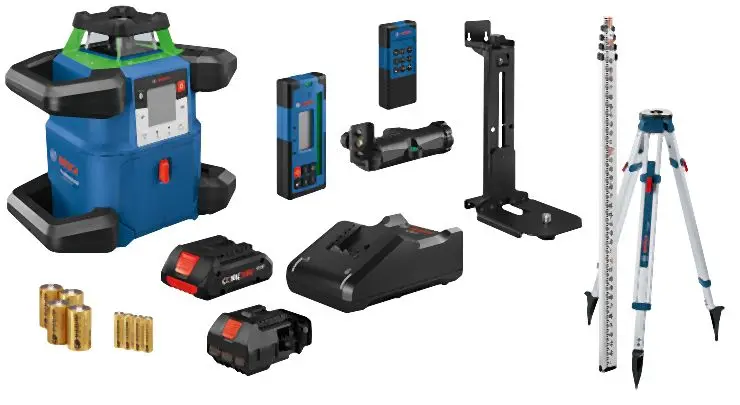

- (1) GRL4000-90CHVG 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser
- (1) LR40G Laser Receiver with Bracket
- (1) GBA18V40 18V CORE18V Lithium-Ion 4.0 Ah Space-saving Battery
- (1) 18V Battery Charger
- (1) BA1 Alkaline Battery Modifyer
- (4) D Batteries
- (4) AA Batteries
- (1) BT170 Heavy-Duty Aluminum Tripod
- (1) GR13 13 Ft. Grade Rod
- (1) WM6 Wall Mount
- (1) RC5 Remote Regulation
- (1) Carrying Case
- Fully featured rotary laser – has Dual Dial-In Slope, CORE18V power, Bluetooth® connectivity, uCAL utilizer-calibration and more
- Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes
- Dual power source – for extended runtime and choice of a 4.0 or 8.0 Ah CORE18V battery or a battery adapter with four (D) cell batteries
- Long-lasting design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
- Bluetooth® connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more
- uCAL – utilizer-calibration guiding the utilizer step-by-step to confirm tool state or calibrate the rotary laser to ensure accuracy on the jobsite
Technical specs
- Battery: Lithium-Ion Battery
- Height: 11.0″
- IP Rating: IP 68
- Laser Beam Color: Green
- Laser Diode: Class 2, 500-540 nm
- Length: 12.8″
- Leveling Type: Self-Leveling, Up to 5°
- Material: Plastic Composite
- Mount Threading: 5/8-11
- Operating Temperature: 14° F / -10° C ~1 22° F / 50° C
- Range: Up to 4,000-ft.
- Weight: 8.2lb
- Weight (lbs.): 8.2
- Width: 7.4″
- Works With: Laser Receivers LR40G, LR 1 G Tripods BT160, BT170HD, BT300HD Grade Rods GR 16, GR500
- Includes: (1) GRL4000-90CHVG 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser, (1) LR40G Laser Receiver with Bracket, (1) GBA18V40 18V CORE18V Lithium-Ion 4.0 Ah Compact Battery, (1) 18V Battery Charger, (1) BA1 Alkaline Battery Adapter, (4) D Batteries, (4) AA Batteries, (1) BT170 Heavy-Duty Aluminum Tripod, (1) GR13 13 Ft. Grade Rod, (1) WM6 Wall Mount, (1) RC5 Remote Control, (1) Carrying Case
